What is a male and female steering wheel connector?
The importance of the number of pins in the male and female steering wheel connector
The number of pins of each connector determines its capacity and performance. Each pin creates a separate electrical path that can be used to transmit commands, signals, or power.
Command connectors are usually designed in 6-pin to 24-pin models to cover various industrial needs. The higher the number of pins, the higher the number of signals that can be transmitted.
Yazd industry leader has provided a full range of male and female steering wheel connectors from 6 pin to 24 pin, allowing customers to choose accurately based on the type of application and electrical capacity.
Introducing the types of male and female steering wheel connectors in terms of the number of pins
1. 6-pin steering wheel connector
This type of connector is suitable for systems with a limited number of commands. It is usually used in the connections of simple sensors, small control equipment and test devices.
Male and female 6-pin steering connector is an ideal option for limited environments due to its small size, easy installation and high resistance to vibration.
2. 8-pin steering wheel connector
It is one of the most widely used models in industrial systems. This type of connector is used in robotics, packaging machines, and steering panels.
Pishre Sanat Yazd offers a variety of male and female 8-pin steering connectors in waterproof and dust-resistant models.
3. 12-pin steering wheel connector
The 12-pin connector is used to transmit multiple signals at the same time. This model is usually used in automatic production lines and complex industrial machines. Metal and plastic models with a twist lock are available in the products of Peshre Sanat Yazd, which ensures a safe connection.
4. 16-pin steering wheel connector
In central control systems where the number of signals is more, a 16-pin male and female command connector is used.
In addition to command transmission, this model is also used in some cases to transmit low voltage and control data.

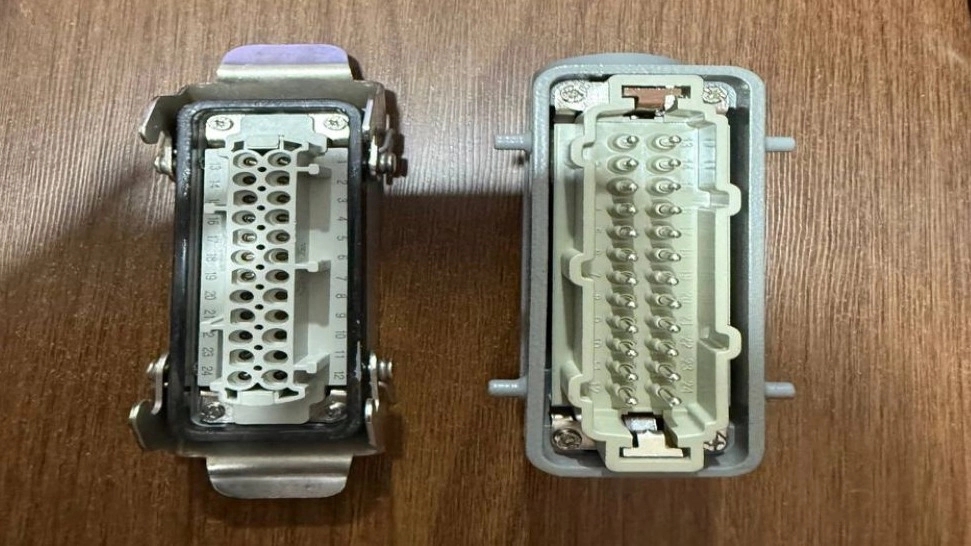

5. 24-pin steering wheel connector
This model is special for heavy industrial applications and large control systems.
24-pin male and female command connector is used in multi-axis CNC machines, extensive PLC systems and factory automation due to the high number of communication paths.
Yazd industry leader covers the needs of advanced industries in the country by supplying this model from world-renowned brands.
Types of structure and body material of male and female steering wheel connector
Metal body
Metal body is suitable for environments with harsh conditions and high temperature. This model has a very good resistance to impact, vibration and electromagnetic fields.
Plastic body
Plastic models are lighter and suitable for more general applications. This type is mostly used in electrical panels and internal control systems.
Locking type
Many models of male and female steering connectors have a twist or push lock to prevent sudden disconnection. This feature is very important in environments that have a lot of vibration.
Both types of metal and plastic bodies with various locking systems are available in the Pishru Sanat Yazd collection.
Protection standards and quality of connectors
When choosing male and female command connectors from 6 pin to 24 pin, the protection level (IP Rating) should be considered.
- IP65: resistant to dust and splashing water
- IP67: resistant to temporary immersion in water
- IP68: suitable for use in very humid and underwater environments
The products supplied by Pishro Sanat Yazd have CE and RoHS international standards and have stable performance in harsh industrial conditions.
Applications of male and female steering wheel connector from 6 pin to 24 pin
- Industrial and control panels
- PLC and automatic control systems
- Packaging, printing and cutting machines
- Automatic and robotic assembly lines
- Medical and laboratory equipment
- Intelligent transportation systems and elevators
In all these industries, the use of male and female command connectors increases installation speed, reduces connection errors and increases system safety.
Important points in choosing the right connector
- Determine the number of required pins based on the number of signals.
- Choose the body material according to the working environment (metal or plastic).
- Consider the degree of IP protection according to the environmental conditions.
- Check the type of lock and connection method to be safe against vibration.
- From a reliable supplier such as the industry leader Buy in Yazd to ensure the authenticity and quality of the product.
Advantages of using male and female steering connectors
- Quick and easy installation
- Easy disassembly and repair
- High resistance to vibration and moisture
- Saving installation time and cost
- Increasing the useful life of control equipment
For this reason, most reputable industrial companies use male and female steering connectors from 6 pin to 24 pin in their production lines.
Services and benefits of buying from Yazd industry leader
Pishro Sanat Yazd is one of the leading companies in the field of supplying electrical equipment and industrial automation in the country. With years of experience, this collection offers a complete set of male and female steering wheel connectors in different types and sizes.
The benefits of buying from the industry leader in Yazd
- Free technical consultation to choose the best model
- Wide variety of world famous brands
- Permanent inventory of 6 to 24 pin models
- Competitive and suitable market price
- Guarantee of product authenticity and quality guarantee
- Fast delivery all over the country
Specialist consultants of Pishru Sanat Yazd are ready to respond to the technical needs of different industries to provide the best solution for your project.
Maintenance and correct installation of male and female steering wheel connector
In order to increase the useful life and maintain the proper functioning of the connectors, it is necessary to observe the following:
- Avoid applying pressure or impact when connecting.
- Make sure the pins are clean before installation.
- Use a suitable and standard cable.
- Use a waterproof cap in humid environments.
- When disassembling, turn off the system first.
These items increase the durability and better performance of male and female steering connectors in industrial environments.
Summary
Male and female command connector from 6 pin to 24 pin is one of the most important components of control and industrial automation systems. These connectors are used in all modern industries with their resistant structure, fast connection capability and diversity in the number of pins.
When buying, it is very important to choose a reliable supplier. The leader of Yazd industry is one of the best options for Iranian industries by providing various types of male and female steering connectors, professional consulting services and product quality assurance.
